ACO pipe

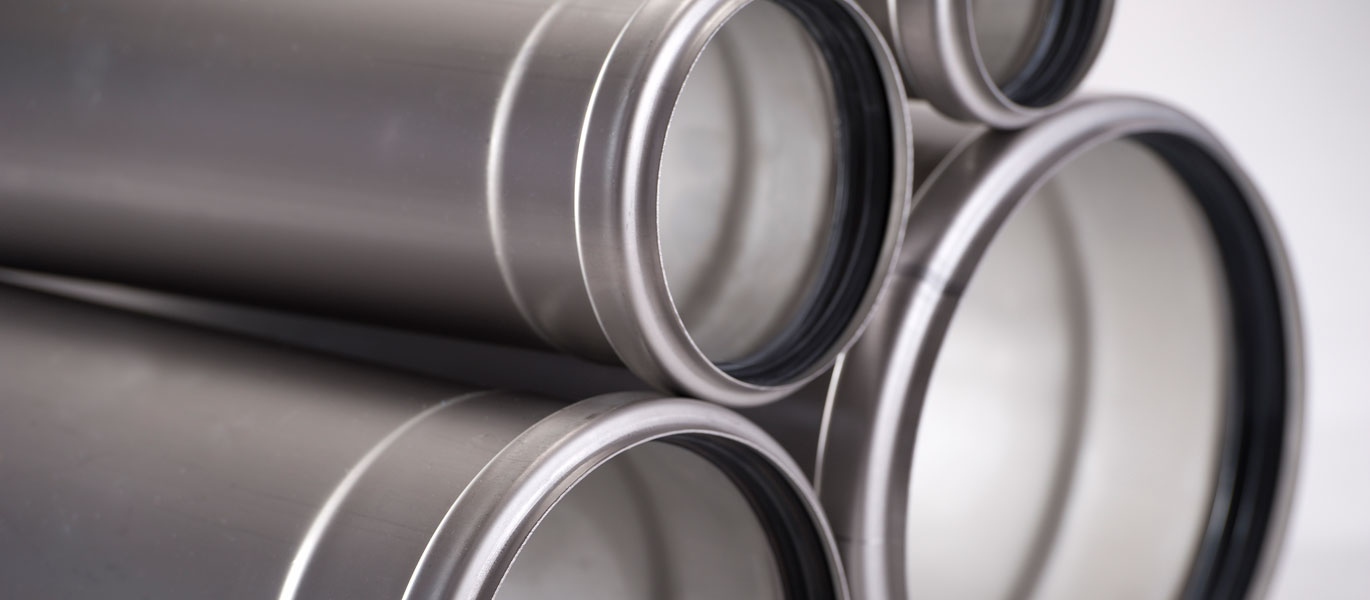

Тръбната система на АСО от неръждаема стомана с муфа е предназначена за сиви и черни води. АСО дава гаранция на продукта 40+ години, благодарение на качеството на материалите. Лесната инсталация и функционалност се дължат на механичната връзка с муфа. Тръбите АСО са оптимално хигиенични, здрави и издържливи на агресивни и горещи течности, в сравнение с пластмасовите, чугунените и стоманените заварени тръбни системи за гравитационно и вакуумно отводняване.

Научете повече за ACO pipе:
Онлайн каталог

  • Проектирани и изработени съглсно хармонизираната европейска норма EN 1124 както и ISO 9001
  • Изработени от аустенитна неръждаема стомана, която е силно устойчива на корозия
  • Push- fit система за монтаж, гарантираща водоплънтост на връзките
  • Диапазон на работното налягане от -0,8 бара до 0,5 бара, без да се използват скоби (и до 8 бара със скоба с гнездо за високо налягане)
  • Дебелина на стената на материала от 1 мм до 2 мм в зависимост от диаметъра на тръбата

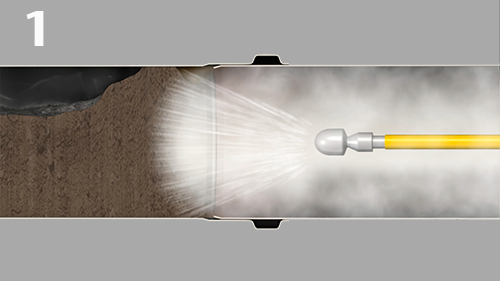

Устойчиви на темературни амлитуди

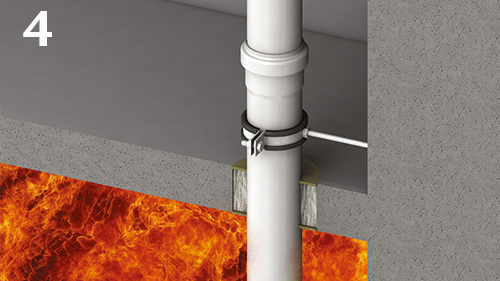

Защита от пожари

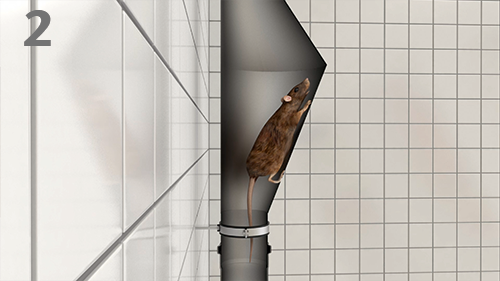

Защита от гризачи
Устойчивост при удар

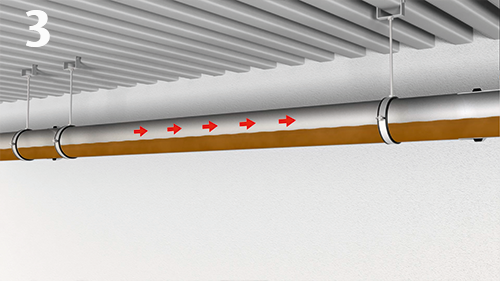

Устойчивост при хоризонтално окачване

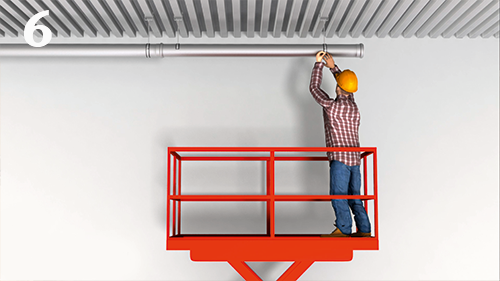

Ниско тегло за лесен монтаж

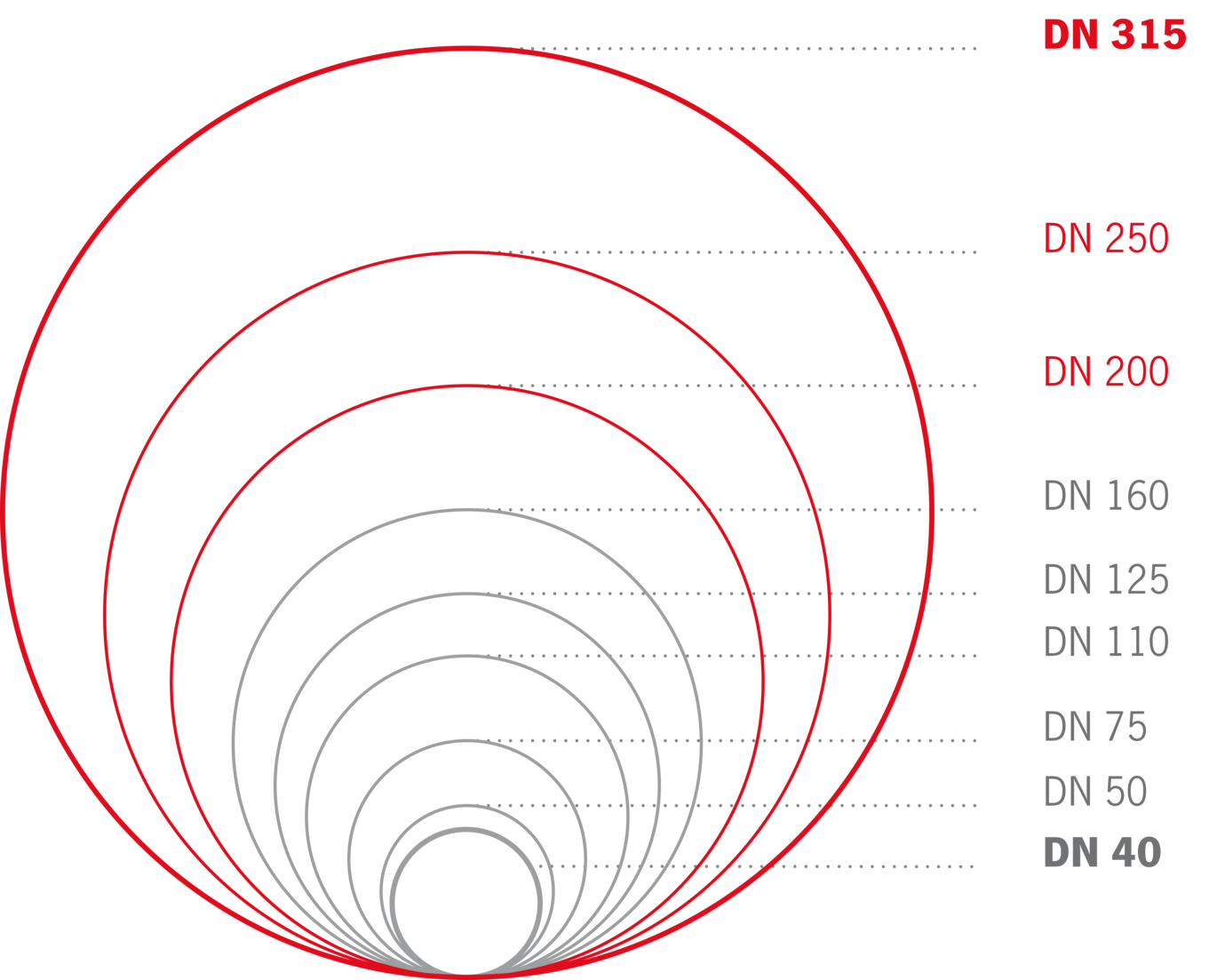

Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
401500.2417304
402500.3417306
405000.6417308
407500.8417310
4010001.1417312
4015001.6417314
4020002.1417316
4025002.8417260
4030003.1417318
4040004.1417264
4050005.1417266
4060006.1417268





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
501500.298500
502500.498502
505000.798504
507501.098506
5010001.398508
5015001.998510
5020002.698512
5025003.2419274
5030003.898514
5040005.0419458
5050006.3419466
5060007.5419474





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
751500.498516
752500.698518
755001.098520
757501.598522
7510002.098524
7515002.998526
7520003.698528
7525004.8419276
7530005.798530
7540007.6419460
7550009.4419468
75600011.3419476





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
1101500.698532
1102500.998534
1105001.598536
1107502.298538
11010002.998540
11015004.398542
11020005.798544
11025007.1419278
11030008.498546
110400011.1419462
110500013.9419470
110600016.7419478





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
1251500.7419692
1252501.0419694
1255001.7419696
1257502.5419698
12510003.3419700
12515004.9419702
12520006.5419704
12525008.1419706
12530009.6419708
125600019.0419710





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
1601501.198548
1602501.698600
1605002.998602
1607504.198604
16010005.498606
16015007.998608
160200010.498610
160250012.9419280
160300015.498612
160400020.4419464
160500025.4419472
160600030.4419480





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
2005004.5419383
20010008.2419387
200200013.7419391
200300023.2419395





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
2505005.50417071
250100010.20417075
250200019.40417079
250300028.70417083





Диаметър на изхода ⌀ D[mm] Активна дължина L [mm]         Тегло [кг]      Арт. No.
3505009.80417238
350100017.70417239
350200033.50417240
350300049.30417241

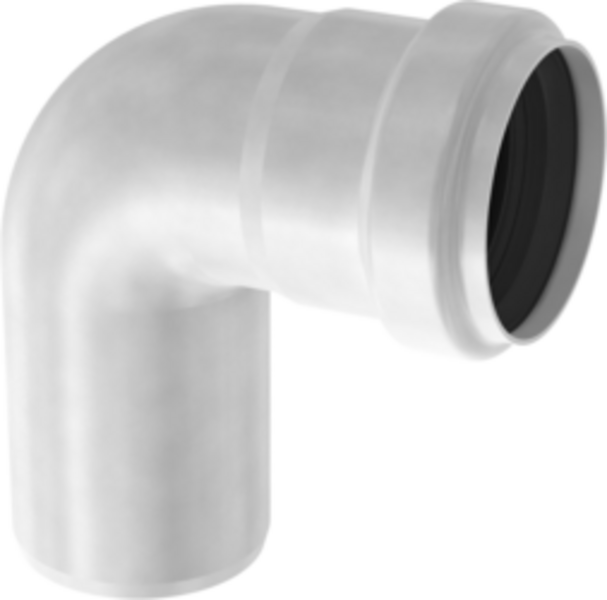

ACO Pipe Bend 87.5Диаметър на изхода ⌀ D[mm] a [mm]        b[mm]   Тегло [кг]      Арт. No.
4079320.2417342
5086400.298700
75107530.498702
110134670.798704
125161930.8419732
1601811051.798706
2002151293.9419411
2502971985.1417087

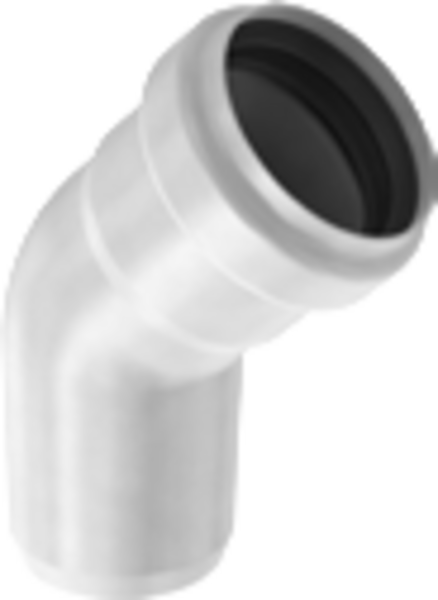

ACO Pipe Bend 45Диаметър на изхода ⌀ D[mm] a [mm]        b[mm]  C[mm]  Тегло [кг]      Арт. No.
5012857760.398708
75179741100.598710
110233881491.098712
1252731031701.1419736
1603321192222.698714
2004151512745.7419407
2505131723369.2417107





ACO Pipe branch 87,5Диаметър на изхода ⌀ D1[mm]Диаметър на изхода ⌀ D2[mm] a [mm]       b[mm]  Тегло [кг]  Арт. No.
DN 50DN 40106980.3417442
DN 75DN 40139980.3417444
DN 75DN 50139900.398928
DN 110DN 501831170.598932
DN 110DN 751831170.898936
DN 125DN 751871100.9419752
DN 125DN 1102051270.9419756
DN 160DN 1102881842.3400691
DN 200DN 1602931863.6419415





ACO Pipe branch 45Диаметър на изхода ⌀ D1[mm]Диаметър на изхода ⌀ D2[mm] a [mm]       b[mm] c[mm]  Тегло [кг]  Арт. No.
DN 50DN 4011955710.30417406
DN 75DN 4014456940.30417446
DN 75DN 5014456940.30400661
DN 110DN 50147421190.50400665
DN 110DN 75182601351.00400669
DN 125DN 75200651411.12419764
DN 125DN 110250901601.10419768
DN 160DN 1103321191902.60400699
DN 200DN 1603591232504.60419423





ACO Pipe Single branch 87_5Диаметър на изхода ⌀ D1[mm]a [mm]    b[mm]    Тегло [кг]  Арт. No.
DN 40101690.3417362
DN 50106710.398732
DN 75139900.598734
DN 1101831170.898736
DN 1252201350.91419748
DN 1602881842.398738
DN 2003332064.4419419





ACO Pipe single branch 45Диаметър на изхода ⌀ D1[mm]a [mm]    b[mm] c[mm]    Тегло [кг] Арт. No.
DN 4011858630.3417366
DN 5012857760.398748
DN 75179741100.598800
DN 110233881491.098802
DN 1252731031701.14419760
DN 1603321192222.698804
DN 2004151512745.7419427





ACO Pipe double branch 87,5Диаметър на изхода ⌀ D1[mm]a [mm]    b[mm]    Тегло [кг]  Арт. No.
DN 40101690.30417364
DN 50106710.3098740
DN 75139900.5098742
DN 1101831170.9098744
DN 1602881842.7098746





ACO Pipe double branch 45Диаметър на изхода ⌀ D1[mm] a [mm]       b[mm] c[mm]  Тегло [кг]  Арт. No.
DN 4011858630.4417374
DN 5012857760.498806
DN 75179741100.798808
DN 110233881491.298810
DN 1603321842223.598812
